Är horisontellt enstegs slutsuktion centrifugalpump Tillverkare

Visa produkter Kontakta oss
  • Är horisontellt enstegs slutsuktion centrifugalpump
Metallcentrifugalpump

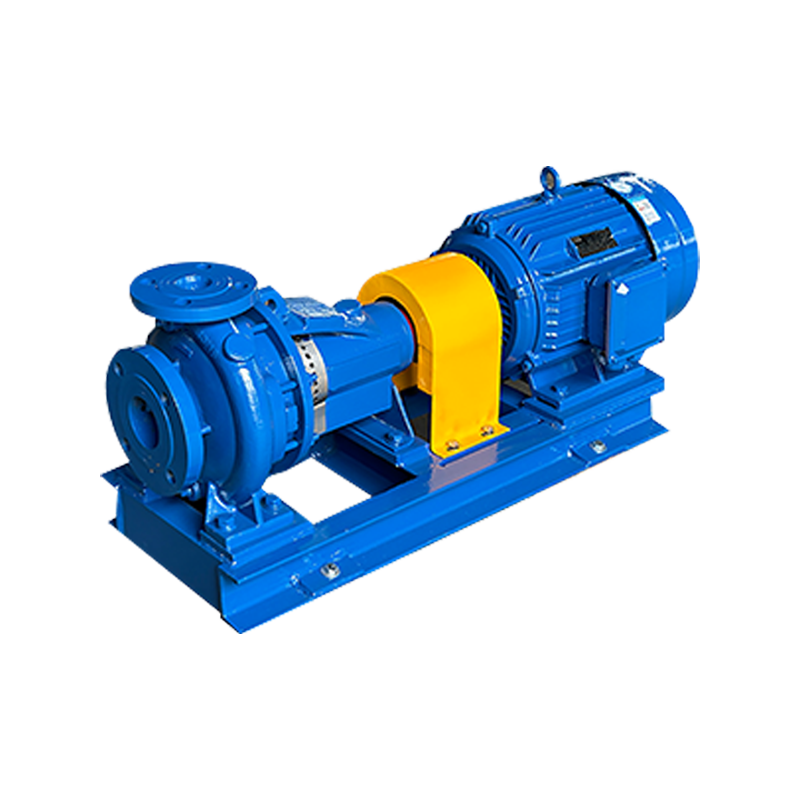

Är horisontellt enstegs slutsuktion centrifugalpump

1.2, IS Series Pump är en horisontell enstegs slutfasig centrifugalpump för transport av klart vatten och vätskor som liknar vatten i fysiska och kemiska egenskaper utan fasta partiklar, som används i fabriker, gruvor, byggnader, brandbekämpning, bevattning, kommunal vattenförsörjning och så vidare.
1.3. Förändringen av prestationsparametrar för pumpar med samma specifikationer kan realiseras genom att klippa pumphjulets ytterdiameter
1.4. Seriepumpen är enkel i struktur, pålitlig i prestanda, liten i volym, ljus i vikt, bra i motstånd mot ångkorrosion, låg i kraftförbrukning och bekväm vid användning och underhåll.
1.5. Is the pump suitable for conveying the medium temperature of -10-85 C, with conventional working pressure < 1.0MPa, if you need to increase it to 1.6Mpa or higher, please specify when ordering the Conventional speed of the pump is 1450rpm and 2900rpm, if you need to run at the maximum speed of 3550rpm (60Hz power supply or with gas or diesel engine), the impeller outer diameter of Passformen enligt vårt företags arbetsvillkor för att tillhandahålla tekniska tjänster.
1.6.  Är seriens pumpflänstrycksnivå för PN16 (GB9119), såsom enhetstryck har speciella krav, enligt produktionen av PN25 (GB9119) för att tillhandahålla, ange i valet.
1.7.  Vanligt använda material för huvuddelar av pumpen.

+ Kontakta oss + Nedladdning av katalogen

Produktbeskrivning

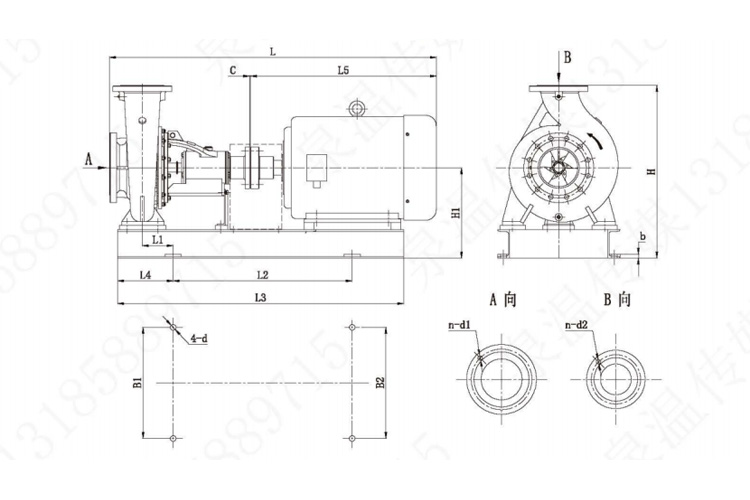

Struktur och material

Modell och tekniskt datum

Typ n
hastighet 		Q
Kapacitet
H
Huvud 		(Npsh) r η Driva
Fabriksstödsuppsättning Pumphjulets yttre diameter Pumpkaliber Avsmalnande diameter Pumpa huvudvikt
Ingång Utgång Sugning Ansvarsfrihet
(R.P.M) (m³/h) (1/s) USGPM (m) (Fötter) (m) (Fötter) (%) (Km) (mm) (mm) (mm) (kg)
IS32/130 2900 9 2.5 39.6 24.5 80.4 1.2 3.9 49 1.23 2.2 Y90L-2
2,2 kW 		139 50 32 / 50 27.5
15 4.2 66.0 22 72.2 1.8 5.9 55 1.63 2.2
18 5.0 79.3 20 65.6 2.3
7.5 		56 1.75 2.2
IS32/130A 8.4 2.3 37.0 21 68.9 1.8 5.9 47 1.02 1.5 Y90L-2
2,2 kW 		130
2900 14 3.9 61.6 19 62.3 2 6.6 54 1.34 2.2
16.8 4.7 74.0 17 55.8 2.3 7.5 55 1.41 2.2
IS32/130B 2900 7.8 2.2 34.3 18 591 1.8 5.9 43 0.89 1.1 Y90S-2
1,5 kW 		120
13 3.6 572 16 52.5 1.88 6.2 51 1.11 1.5
15.6 4.3 68.7 14.5 47.6 2.08 6.8 52 1.18 1.5
IS32/160 2900 10.8 3.0 47.6 40 131.2 1.2 3.9 47 2.50 3 Y132S1-2
5,5 kW 		174 50 32 / 50 35
18 5.0 79.3 38.5 126.3 2 6.6 58.5 3.23 4
21.6 6.0 95.1 36 118.1 2.6 8.5 59 3.59 5.5
IS32/160A 2900 10.5 2.9 46.2 35.7 1171 1.9 6.2 46 2.22 3 Y112M-2
4kw 		165
17 4.7 74.8 33 108.3 1.95 6.4 55 2.78 4
20.4 5.7 89.8 30 98.4 2.4 79 56 2.98 4
IS32/160B 2900 9.6 2.7 42.3 32.4 106.3 1.9 6.2 44 1.93 2.2 Y112M-2
4kw 		155
16 4.4 70.4 29.5 96.8 1.95 6.4 53 2.43 4
19.2 5.3 84.5 27 88.6 2.2 7.2 54 2.61 4
IS32/200 2900 10.8 3.0 476 66 216.5 1.3 4.3 43 4.51
5.5 		Y160M1-2
11kw 		214 50 32 50 41
18 5.0 79.3 61.5 201.8 1.9 6.2 52.5 5.74 7.5
21.6 6.0 95.1 57 1870 2.3 7.5 53.5 6.27 11
IS32/200a 2900 10.2 2.8 44.9 58 190.3 1.8 5.9 40 4.03 5.5 Y132S2-2
7,5 kW 		205
17 4.7 74.8
55.5 		182.1 1.95 6.4 53 4.85
7.5
20.4
5.7 		89.8 52 170.6 2.2 7.2 53 5.45
7.5
IS32/200b 2900 9.9 2.8 43.6 51.5 169.0 1.8 5.9 38 3.65 5.5 Y132S2-2
7,5 kW 		195
16.5 4.6 72.6 48 157.5 1.9 6.2 49 4.40 5.5
19.8 5.5 872 45 147.6 2.15 7.1 48.5 5.00 7.5
IS32/260 2900 13.2 3.7 58.1 102 334.6 1.8 5.9 32.5 11.28 15 Y160L-2
18,5 kW 		264 50 32 / 50 59
22 6.1 96.9 96 315.0 2.7 8.9 40.5 14.20 18.5
26.4 7.3 116.2 89 292.0 3.3 10.8 41 15.61 18.5
IS32/260A 2900 12.6 3.5
55.5 		92.5 303.5 2.1 6.9 32 992 15 Y160m2-2
15 kW 		255
21 5.8 92.5 88 288.7 2.2 7.2 40 12.58 15
25.2 70 111.0 83 272.3 2.5 8.2 41 13.89 15
IS32/260B 2900 12.3 3.4 54.2 84.5 277.2 2.15 7.1 30 9.43 15 Y160m2-2
15 kW 		245
20.5 5.7 90.3 81 265.7 2.16 7.1 38.5 11.75 15
24.6 6.8 108.3 77 252.6 2.38 7.8 40 12.90 15
IS40/130 2900 18 5.0 79.3 26 85.3 1.4 4.6 61 2.09 3 Y112M-2
4kw 		139 65 40 / 65 30
30 8.3 132.1 24.5 80.4 2.5 8.2
75.5 		2.65 4
36 10.0 158.5 23 75.5 3.5 11.5 77.5 2.91 4
IS40/130A 2900 16.8 4.7 74.0 22.5 73.8 1.8 5.9 59 1.74 2.2 Y112M-2
4kw 		130
28 7.8 123.3 21 68.9 2 6.6 70 2.29 3
33.6 9.3 1479 20 65.6 2.25 7.4 72 2.54 4
IS40/130B 2900 15.6 4.3 68.7 18.5 60.7 1.8 5.9 53 1.48 1.5 Y100L-2
3kw 		120
26 7.2 114.5 17.5 574 1.9 6.2 65 1.91 3
31.2 8.7 1374 16.5 54.1 2.15 71 65 2.16 3
IS40/160 2900 18 5.0 79.3 41 134.5 2.7 8.9 54 3.72 5.5 Y132S2-2
7,5 kW 		174 65 40 / 65 36
30 8.3 1321 38.5 126.3 3.2 10.5 64 4.91
7.5
36 10.0 158.5 35.5 116.5 3.7 12.1 64.5 5.40 7.5
IS.40/160A 2900 17.1 4.8 75.3 36 118.1 2.1 6.9 52 3.22 4 Y132S1-2
5,5 kW 		165
28.5 79 125.5 33.5 1099 2.5 8.2 65 4.00 5.5
34.2 9.5 150.6 31 101.7 3.25 10.7 62 4.66 5.5
IS40/160B 2900 15.9 4.4 70.0 31.5 103.3 2 6.6 48 2.84 4 Y112M-2
4kw 		155
26.5 74 116.7 29 95.1 2.4 79 59.5 3.52 4
31.8 8.8 140.0 25.5 83.7 2.9 9.5 59 3.74 4
Är 40/200
2900 		18 5.0 79.3 64 210.0 1.85 6.1 48 6.54 7.5 Y160M1-2
11kw 		214 65 40 65 44
30 8.3 132.1 61 200.1 2.7 8.9 59.5 8.38 11
36 10.0 158.5 58.5 191.9 3.2 10.5 62 9.25 11
IS40/200A 2900 17 4.7 74.8 58.5 1919 1.8 5.9 48.5 5.58 7.5 Y160M1-2
11kw 		205
29 8.1 1277 56 183.7 1.95 6.4 61 7.25 11
34.5 9.6 151.9 53.5 175.5 2.45 8.0 63 798 11
IS40/200b 2900 16.5 4.6 72.6 52.5 172.2 1.8 5.9 46 5.13 5.5 Y160M1-2
11kw 		195
27.5 7.6 121.1 49 160.8 1.9 6.2 59 6.22 7.5
33 9.2 145.3 47 154.2 2.2 7.2 61 6.92 11
IS40/260 2900 21.6 6.0 95.1 98.5 323.2 1.5 4.9 45 12.88 15 Y180M-2
22 kW 		264 65 40 / 65 61
36 10.0 158.5 95.5 313.3 2 6.6 56 16.72 18.5
43.2 12.0 190.2 91 298.6 2.4 79 59 18.15 22
IS40/260A 2900 19.2 5.3 84.5 89 292.0 1.8 5.9 42 11.08 15 Y160L-2
18,5 kW 		255
32 8.9 140.9 87 285.4 1.95 6.4 53 14.31 18.5
38.4 10.7 169.1 84 275.6 2.35 7.7 55 15.97 18.5
IS40/260B 2900 18.5 5.1 81.5 80 262.5 1.8 5.9 40 10.08 15 Y160L-2
18,5 kW 		245
30.5 8.5 134.3 78 255.9 1.9 6.2 53 12.22 15
37 10.3 162.9 76 249.3 2.2 7.2 54 14.18 18.5
IS40/320H 2900 21.6 6.0 95.1 150 492.1 2 6.6 34 25.95 30 Y200L2-2
37kw 		329 65 40 80 65 96
36 10.0 158.5 139 456.0 2.8 9.2 44 30.97 37
43.2 12.0 190.2 127 416.7 3.8 12.5 45 33.20 37
IS40/320HA 2900 19.5 54 85.9 124 406.8 1.7 5.6 34 19.37 22 Y200L1-2
30kw 		300
32.5 9.0 143.1 115 377.3 2.8 9.2 43 23.67 30
38.5 10.7 169.5 107 351.0 3.8 12.5 44 25.50 30
IS40/320HB 2900 17.5 4.9 771 109 357.6 1.5 4.9 32 16.23 22 Y180M-2
22 kW 		280
29 8.1 1277 102 334.6 2.3 7.5 41 19.65 22
34.5 9.6 151.9 95 311.7 3.2 10.5 42 21.25 22
IS50/130 2900 36 10.0 158.5 26 85.3 2.4 79 67.5 3.78 5.5 Y132S2-2
7,5 kW 		139 65 50 80 80 34
60 16.7 264.2 23.5 771 3.3 10.8 76 5.05 5.5
72 20.0 3170 21.5 70.5 3.9 12.8 74.5 5.66
7.5
IS50/130A 2900 33.5 9.3 1475 21.5 70.5 2.5 8.2 64.5 3.04 4 Y132S1-2
5,5 kW 		130
56 15.6 246.6 18.5 60.7 3.1 10.2 70.5 4.00 5.5
67.5 18.8 297.2 15.5 50.9 3.6 11.8 65.5 4.35 5.5
IS50/130B 2900 31 8.6 136.5 18.5 60.7 2.5 8.2 61 2.56 3 Y132S1-2
5,5 kW 		120
52 14.4 228.9 16.5 54.1 2.9 9.5 70 3.34 4
62 17.2 273.0 15 49.2 3.3 10.8 69 3.67 5.5
IS50/160 2900 40 11.1 176.1 42.5 139.4 2 6.6 68.5 6.76 11 Y160M1-2
11kw 		174 65 50 80 80 38
65 18.1 286.2 39 128.0 3.5 11.5 76 9.08 11
78 21.7 343.4 35.5 116.5 4.7 15.4 73.5 10.26 11
Är 50/160A 2900 37 10.3 162.9 38 124.7 2.5 8.2 70 5.47
7.5 		Y160M1-2
11kw 		165
61.5 17.1 270.8 34.5 113.2 3.3 10.8 76 7.60 11
74 20.6 325.8 30 98.4 3.9 12.8 74 8.17 11
IS50/160B 2900 34.8 9.7 153.2 34 111.5 2.35 7.7 71 4.54 7.5 Y160M1-2
11kw 		155
58 16.1 255.4 30.5 100.1 3.1 10.2 75 6.42 11
69.5 19.3 306.0 28 91.9 3.7 12.1 73 7.26 11
IS50/200 2900 36 10.0 158.5 61 200.1 1.9 6.2 64 9.34 15 Y160L-2
18,5 kW 		214 65 50 80 80 46
60 16.7 264.2 55 180.4 3.2 10.5 70 12.84 15
72 20.0 317.0 51 167.3 4.1 13.5 69.5 14.39 18.5
IS50/200A 2900 34.5 9.6 151.9 57 1870 2.5 8.2 60 8.93 11 Y160m2-2
15 kW 		205

57.5 		16.0 253.2 53 173.9 3.1 10.2 72 11.53 15
69 19.2 303.8 50.5 165.7 3.75 12.3 73 13.00 15
IS50/200b 2900 33 9.2 145.3 49.5 162.4 2.5 8.2 62 7.18 11

Y160m2-2
15 kW 		195 65 50 80 80 46
54.5 15.1 240.0 43 141.1 3 9.8 68 9.39 15
65.5 18.2 288.4 38 124.7 3.5 11.5 66 10.27 15
IS50/260

IS50/260G 		2900 40 11.1 176.1 103 3379 2.2 7.2 54 20.78 30 Y200L2-2
37kw 		264 65 50 80 80 63
65 18.1 286.2 97.5 3199 4 13.1 63.5 2718 30
78 21.7 343.4 91 298.6 4.9 16.1 63 30.68 37
IS50/260AX

S50/260GA 		2900 38.5 10.7 169.5 91.5 300.2 2.4 79 50 1919 22 Y200L1-2
30kw 		255
63 17.5 277.4 85.5 280.5 3.3 10.8 60 24.45 30
75.5 21.0 332.4 80 262.5 3.9 12.8 61.5 26.75 30
IS50/260B

IS50/260 GB 		2900 37 10.3 162.9 84 275.6 2.3
7.5 		50 16.93 18.5 Y200L1-2
30kw 		245
60.5 16.8 266.4 77 252.6 3.2 10.5 60 21.14 30
72.5 20.1 319.2 71 232.9 3.9 12.8 58 24.17 30
IS50/320H 2900 54 15.0 237.8 146 479.0 3.5 11.5 53 40.51 45 Y280S-2
75kw 		329 65 50 80 80 101
90 25.0 396.3 137 449.5 7 23.0 61 55.05 75
108 30.0 475.5 130 426.5 8 26.2 62 61.67 75
IS50/320HA 2900 48.5 13.5 213.5 130 426.5 3.3 10.8 50 34.34 45 Y280S-2
75kw 		300
81 22.5 356.6 124 406.8 6.5 21.3 60 45.59 55
97 26.9 4271 117 383.9 7.5 24.6 61 50.67 75
S50/320HB 2900 46.5 12.9 204.7 105 344.5 2.5 8.2 52 25.57 30 Y225M-2
45kw 		280
78 21.7 343.4 98 321.5 5 16.4 59.5 34.99 45
93 25.8 409.5 91 298.6 6.5 21.3 59 39.06 45
IS65/130 2900 60 16.7 264.2 25.5 83.7 2.6 8.5 66.5 6.27 7.5 Y160M1-2
11kw 		139 80 65 100 100 39
100 278 440.3 21 68.9 3.9 12.8 70 8.17 11
120 33.3 528.3 16 52.5 4.8 15.7 59 8.86 11
IS65/130A 2900 56 15.6 246.6 21.8 71.5 3 9.8 65 5.11 7.5 Y160M1-2
11kw 		130
93.5 26.0 411.7 17.5 574 3.5 11.5 70 6.37 11
112.5 31.3 495.3 13 42.7 4.1 13.5 57 6.99 11
IS65/130B 2900 52 14.4 228.9 18 591 3 9.8 62.5 4.08 5.5 Y132S2-2
7,5 kW 		120
86.5 24.0 380.8 13.7 44.9 3.3 10.8 66 4.89 7.5
104 28.9 4579 10.6 34.8 3.75 12.3 57 5.27 7.5
IS65/160 2900 64.5 17.9 284.0 39 128.0 3.2 10.5 69 993 15 Y160L-2
18,5 kW 		174 80 65 100 100 43
108 30.0 475.5 33.5 1099 4.2 13.8
77.5 		12.71 15
129.5 36.0 570.2 29 95.1 5 16.4 72 14.20 18.5
IS65/160A 2900 57 15.8 251.0 34 111.5 3.6 11.8 63 8.38 11 Y160m2-2
15 kW 		165
95 26.4 418.3 30.5 100.1 4.1 13.5 74 10.66 15
114 31.7 501.9 27 88.6 4.8 15.7 71 11.81 15
IS65/160B 2900 53.5 14.9 235.6 30 98.4 3.6 11.8 60 7.28 11 Y160M1-2
11kw 		155
89 24.7 391.9 25.5 83.7 3.95 13.0 70 8.83 11
107 29.7 471.1 22.5 73.8 4.5 14.8 69 9.50 11
IS65/200

IS65/200g 		2900 66 18.3 290.6 64 210.0 2.2 7.2 65 17.70 22 Y200L1-2
30kw 		214 80 65 125 100 70
110 30.6 484.3 59 193.6 4.2 13.8 74.5 23.72 30
132 36.7 581.2 54.5 178.8 6.2 20.3 73.5 26.66 30
IS.65/200a

IS65/200GA 		2900 63 17.5 277.4 60 196.9 3 9.8 64 16.08 18.5 Y200L1-2
30kw 		205
105.5 29.3 464.5 55.5 182.1 3.75 12.3 74 21.55 30
126.5 35.1 557.0 52 170.6 4.85 15.9 73.5 24.37 30
IS65/200b

S65/200 GB 		2900 60 16.7 264.2 50 164.0 3 9.8 62 13.18 18.5 Y180M-2
22 kW 		195
100 278 440.3 45.5 149.3 3.6 11.8 75.5 16.41 22
120 33.3 528.3 42 137.8 4.4 14.4 75 18.30 22
IS65/260 2900 72 20.0 3170 98 321.5 3.3 10.8 64.5 29.79 37 Y250M-2
55kw 		264 80 65 125 100 81
120 33.3 528.3 90 295.3 4.5 14.8 73 40.29 45
144 40.0 634.0 83 272.3 5.4 17.7 73 44.59 55
IS65/260A 2900 69.5 19.3 306.0 92 301.8 3.25 10.7 65 26.79 37 Y225M-2
45kw 		255
116 32.2 510.7 86 282.2 4.4 14.4 70 38.81 45
139 38.6 612.0 79 259.2 4.95 16.2 72 41.53 45
IS65/260B 2900 67 18.6 295.0 82.5 270.7 3.2 10.5 63 23.89 30 Y225M-24
5 kW 		245
111.5 31.0 490.9 76 249.3 4.25 13.9 71 32.50 37
133.5 371 587.8 71 232.9 4.95 16.2 70 36.88 45
IS65/320H 2900 81 22.5 356.6 147 482.3 3.8 12.5 54 60.05 75 Y315S-2
110 kW 		329 80 65 125 100 110
135 375 594.4 131 429.8 4.4 14.4 63 76.45 90
162 45.0 713.3 115 377.3 5.5 18.0 60 84.56 110
IS65/320HA 2900 75 20.8 330.2 120 393.7 3.7 12.1 55 44.56 55 Y280M-2
90kw 		300
125 34.7 550.4 108 354.3 4.3 14.1 62 59.30 75
150 41.7 660.4 97 318.2 5.2 171 58 68.32 90
IS65/3

IS20HB 		2900 69 19.2 303.8 107 351.0 3.5 11.5 59 34.08 45 Y280S-2
75kw 		280
115 31.9 506.3 94 308.4 4.3 14.1 61 48.26 55
138 38.3 607.6 83 272.3 4.8 15.7 54 57.76 75
IS80/160

IS80/160G 		2900 100 27.8 440.3 39.5 129.6 3.3 10.8 71 15.15 18.5 Y200L1-2
30kw 		174 100 80 150 125 54
162 45.0 713.3 35 114.8 4.3 14.1 78 19.80 22
195 54.2 858.6 31 101.7 5.2 17.1 75 21.95 30
IS80/160A

IS80/160GA 		2900 95 26.4 418.3 33 108.3 3.3 10.8 65 13.13 18.5 Y180M-2
22 kW 		165
153.5 42.6 675.8 28 91.9 3.85 12.6 72 16.26 18.5
185 51.4 814.5 24 78.7 4.6 15.1 68 17.78 22
IS80/160BX

S80/160 GB 		2900 89 24.7 391.9 29.5 96.8 3.25 10.7 64 11.17 15 Y160L-2

18,5 kW 		155
144.5 40.1 636.2 25 82.0 3.7 12.1 74 13.29 15
174 48.3 766.1 21 68.9 4.3 14.1 70 14.22 18.5
IS80/200 2900 115 31.9 506.3 60 196.9 3.2 10.5 70 26.84 37 Y225M-2
45kw 		214 100 80 150 125 70
190 52.8 836.5 55 180.4 5.1 16.7 78 36.49 45
225 62.5 990.6 50 164.0 6.5 21.3 74.5 41.12 45
IS80/200A 2900 110 30.6 484.3 57 187.0 4 13.1 68 25.11 30 Y225M-2
45kw 		205
182 50.6 801.3 53.5 175.5 4.9 16.1 77 34.44 37
215.5 599 948.8 44.5 146.0 5.85 19.2 70 37.31 45
IS80/200b 2900 105 29.2 462.3 49.5 162.4 4 13.1 68 20.82 30 Y200L2-2
37kw 		195
173 48.1 761.7 45 147.6 4.7 15.4 76 2790 30
205 56.9 902.6 40 131.2
5.5 		18.0 70 31.90 37
IS80/260 2900 115 31.9 506.3 97 318.2 3.8 12.5 65 46.74 55 Y280S-2
75kw 		264 100 80 150 125 91
190 52.8 836.5 88 288.7 6.1 20.0 75 60.71 75
225 62.5 990.6 81 265.7 8 26.2 73.5 67.53 75
IS80/260A 2900 111 30.8 488.7 91.5 300.2 3.95 13.0 63 43.90 55 Y280S-2
75kw 		255
83.5 51.0 8079 81.5 2674 5.2 171 75 54.30 75
217.5 60.4 957.6 73 239.5 6.25 20.5 73 59.23 75
IS80/260B 2900 106.5 29.6 468.9 79 259.2 3.9 12.8 61 37.56 45 Y280S-2
75kw 		245
176.5 49.0 777.1 68.5 224.7 5 16.4 73 45.10 55
209 58.1 920.2 60 196.9 6 19.7 71 48.10 75
IS80/320H 2900 126 35.0 554.8 146 479.0 5.6 18.4 64 78.28 90 Y315M-2

132 kW 		329 100 80 150 125 120
210 58.3 924.6 134 439.6 6.3 20.7 74 103.56 132
252 70.0 1109.5 121 397.0 7 23.0 73 113.75 132
S80/320ha 2900 117 32.5 515.1 125 410.1 6.1 20.0 62 64.24 75 Y315S-2
110 kW 		300
195 54.2 858.6 114 374.0 6.3 20.7 73 82.93 90
234 65.0 1030.3 103 3379 6.9 22.6 72 91.16 110
IS80/320HB 2900 108 30.0 475.5 104 341.2 5 16.4 64 4779 55 Y280M-2
90kw 		280 100 80 150 125 120
180 50.0 792.5 95 311.7 5.8 19.0 73 63.79 75
216 60.0 951.0 85 278.9 6.3 20.7 70 71.43 90
IS100/200 2900 180 50.0 792.5 61 200.1 4 13.1 72 41.53 55 Y280S-2
75kw 		214 125 100 200 150 85
295 81.9 1298.8 51.5 169.0 5.8 19.0 79 52.37 75
340 94.4 1497.0 42 1378 7 23.0 74 52.55 75
IS100/200A 2900 172.5 479 759.5 51 167.3 3.95 13.0 69 34.72 45 Y250M-2
55kw 		205
273 75.8 202.0 42 137.8 4.9 16.1 74 42.20 55
325.5 90.4 1433.1 36 118.1 5.95 19.5 69 46.25 55
IS100/200b 2900 164 45.6 722.1 46 150.9 3.9 12.8 68 30.21 37

Y225M-2
45kw 		195
260 72.2 1144.7
72 		114.8 4.8 15.7 70 35.40 45
310 86.1 364.9 31 101.7 5.6 18.4 67 39.06 45
Är 100/260 2900 190 52.8 836.5 97 318.2 3.7 12.1 71 70.69 90 Y315S-2
110 kW 		264 125 100 200 150 115
295 81.9 1298.8 86 282.2 5.5 18.0 76 90.91 110
350 97.2 1541.0 80 262.5 7.5 24.6 74 103.04 110
IS100/260A 2900 183.5 51.0 8079 85.5 280.5 3.75 12.3 69 61.92 75 Y315S-2
110 kW 		255
285 79.2 1254.8 75 246.1 5 16.4 74 78.66 90
338 93.9 1488.2 66 216.5 6.2 20.3 71 85.57 110
IS100/260B 2900 177 49.2 779.3 76 249.3 3.7 12.1 67 54.68 75 Y280M-2
90kw 		245
274 76.1 1206.4 66 216.5 4.8 15.7 72 68.40 90
325 90.3 1430.9 58 190.3 5.9 194 68 75.49 90
IS32/130 1450 4.5 1.3 19.8 6 19.7 0.62 2.0 35 0.21 0.55 Y801-4
0,55 kW 		139 50 32 / 27.5
7.5 2.1 33.0 5.5 18.0 0.75 2.5 46 0.24 0.55

0.55
9 2.5 39.6 5 16.4 0.9 3.0 49 0.25
IS32/160 1450 5.4 1.5 23.8 9.5 31.2 0.7 2.3 42 0.33 0.55 Y801-4
0,55 kW 		174 50 32 / 35
9 2.5 39.6 9 29.5 1 3.3 48 0.46 0.55
10.8 3.0 47.6 8.3 27.2 1.4 4.6 49.5 0.49 0.55
IS32/200 1450 6 1.7 26.4 16.3 53.5 0.8 2.6 40 0.67 0.75 Y90S-4
1,1 kW 		214 50 32 / 41
9 2.5 39.6 15.4 50.5 1 3.3 48 0.79 1.1
10.8 3.0 47.6 14.5 47.6 1.2 3.9 51 0.84 1.1
IS32/260 1450 7.2 2.0 31.7 25 82.0 0.85 2.8 30 1.63 2.2 Y100L2-4
3kw 		264 0 32 / / 59
12 3.3 52.8 23.5 771 1.6 5.2 395 1.94 3
14.4 4.0 63.4 22 72.2 2.3 7.5 42 2.05 3
IS40/130 1450 10.8 3.0 476 6.5 21.3 0.6 2.0 57 0.34 0.55 Y801-4
0,55 kW 		139 65 40 / 30
18 5.0 79.3 5.8 19.0 0.9 3.0 67 0.42 0.55
21.6 6.0 95.1 5.4 17.7 1.3 4.3 67 0.47 0.55
IS40/160 1450 10.8 3.0 476 10.2 33.5 0.9 3.0 55 0.55 0.75 Y90S-4
1,1 kW 		174 65 40 / / 36
18 5.0 79.3 8.8 28.9 1.4 4.6 62 0.70 1.1
21.6 6.0 95.1 7.8 25.6 1.8 5.9 60 0.76 1.1
IS40/200 1450 10.8 3.0 47.6 16.2 53.1 1.1 3.6 50 0.95 1.1 Y90L-4
1,5 kW 		214 65 40 / 44
18 5.0 79.3 14 45.9 1.3 4.3 56 1.23 1.5
21.6 6.0 95.1 12.4 40.7 1.5 4.9 55 1.33 1.5
IS40/260 1450 12.6 3.5
55.5 		24 78.7 0.85 2.8 42 1.96 2.2 Y100L2-4
3kw 		264 65 40 65 61
21 5.8 92.5 22 72.2 1.3 4.3 52 2.42 3
25.2 7.0 111.0 20 65.6 1.8 5.9 52.5 2.61 3
IS40/320 1450 10.5 2.9 46.2 38 124.7 0.9 3.0 30 3.62 4 Y132S-4
5,5 kW 		329 65 40 / 65 96
17 4.7 74.8 37.5 123.0 1.3 4.3 42 4.13 5.5
20.5 5.7 90.3 37 121.4 1.6 5.2 45 4.59 5.5
IS40/320A 1450 10 2.8 44.0 34.5 113.2 3.3 10.8 30.5 3.08 4 Y132S-4
5,5 kW 		315
16.5 4.6 72.6 32 105.0 2 6.6 38.5 3.73 5.5
20 5.6 88.1 29 95.1 2.9 9.5 37.5 4.21 5.5
IS40/320B 1450 9 2.5 39.6 31 101.7 3.6 11.8 29 2.62 4 Y132S-4

5,5 kW 		300
14.4 4.0 63.4 29 95.1 2 6.6 37 3.07 4
18 5.0 79.3 26 85.3 2.7 8.9 36 3.54 5.5
IS.50/130 1450 18 5.0 79.3 6.6 21.7 1.2 3.9 60 0.54 0.75 Y90S-4
1,1 kW 		139 65 50 80 65 34
30 8.3 132.1 6.3 20.7 1.6 5.2 75.5 0.68 0.75
36 10.0 158.5 5.7 18.7 1.9 6.2 74 0.76 1.1
IS50/160 1450 19.2 5.3 84.5 10.4 34.1 1.25 4.1 64 0.85 1.1 Y90L-4
1,5 kW 		174 65 50 80 65 38
32 8.9 140.9 9.8 32.2 1.7 5.6 75 1.14 1.5
38.4 10.7 169.1 9.4 30.8 2 6.6 74.5 1.32 1.5
IS50/200 1450 18 5.0 79.3 16 52.5 1.4 4.6 58 1.35 1.5 Y100L1-4
2,2 kW 		214 65 50 80 65 46
30 8.3 132.1 14 45.9 1.8 5.9 64 1.79 2.2
36 10.0 158.5 13.5 44.3 2.1 6.9 65 2.04 2.2
Är 50/260 1450 19 5.3 83.7 25 82.0 0.9 3.0 52.5 2.46 3 Y132S-4
5,5 kW 		264 65 50 80 65 63
32 8.9 140.9 24 78.7 1.5 4.9 64.5 3.24 4
38 10.6 1673 23 75.5 2 6.6 66.5 3.58 5.5
IS.50/320 1450 24 6.7 105.7 37 121.4 2 6.6 47 5.15 7.5 Y160M-4
11kw 		329 65 50 80 65 101
40 11.1 176.1 34 111.5 2.3 7.5 58 6.39 7.5
48 13.3 211.3 32 105.0 2.5 8.2 59 7.09 11
IS.50/320A 1450 23 6.4 101.3 32.5 106.6 2 6.6 45 4.52
5.5 		Y132M-4
7,5 kW 		315
38.5 10.7 169.5 30.5 100.1 2.4 7.9 56 5.71 7.5
46 12.8 202.5 28.5 93.5 3 9.8 55 6.49 7.5
IS.50/320B 1450 22 6.1 96.9 29.5 96.8 2 6.6 42 4.21
5.5 		Y132M-4
7,5 kW 		300
36.5 10.1 160.7 27.5 90.2 2.3 7.5 54 5.06 7.5
44 12.2 193.7 26 85.3 2.8 9.2 55 5.66 7.5
IS65/130 1450 21.6 6.0 95.1 6.7 22.0 1.2 3.9 50 0.79 1.1 Y90L-4
1,5 kW 		139 80 65 100 80 39
36 10.0 158.5 6.4 21.0 1.35 4.4 66 0.95 1.1
43.2 12.0 190.2 6 19.7 1.5 4.9 69 1.02 1.5
IS65/160 1450 32.4 9.0 142.7 10 32.8 1.1 3.6 64 1.38 2.2 Y100L1-4
2,2 kW 		174 80 65 100 80 43
54 15.0 2378 9.2 30.2 1.3 4.3 78 1.73 2.2
64.8 18.0 285.3 8.4 27.6 1.5 4.9 81.5 1.82 2.2
IS65/200 1450 35 9.7 154.1 16.4 53.8 1.8 5.9 66 2.37 3 Y112M-4
4kw 		214 80 65 125 80 70
55 15.3 242.2 15 49.2 2.4 79 76.5 2.94 4
66 18.3 290.6 13.5 44.3 2.7 8.9
77.5 		3.13 4
IS65/260 1450 43.2 12.0 190.2 25.3 83.0 1.7 5.6 66.5 4.48
5.5 		Y132M-4
7,5 kW 		264 80 65 125 80 81
72 20.0 3170 21.5 70.5 2.5 8.2 73.5 5.74 7.5
86.4 24.0 380.4 18.5 60.7 3.2 10.5 68 6.40
7.5
IS65/320 1450 43.2 12.0 190.2 37.5 123.0 0.7 2.3 59 748 11 Y160L-4
15 kW 		329 80 65 125 80 110
72 20.0 317.0 33 108.3 1.6 5.2 67 9.66 15
86.4 24.0 380.4 29 95.1 2.4 79 65 10.50 15
IS65/320A 1450 37 10.3 162.9 34.5 113.2 1.9 6.2 55 6.32 11 Y160M-4
11kw 		315 125 80 110
62 17.2 273.0 32 105.0 2 6.6 65 8.31 11
74.5 20.7 328.0 28 91.9 2.3
7.5 		62 9.16 11
IS65/320B 1450 34 9.4 149.7 30.5 100.1 2 6.6 47 6.01 7.5 Y160M-4
11kw 		300
56.5 15.7 248.8 28 91.9 2 6.6 59 7.30 11
68 18.9 2994 25.5 83.7 2.1 6.9 59 8.00 11
IS80/160 1450 48 13.3 211.3 10.5 34.4 1.7 5.6 62.5 2.20 3 Y112M-4
4kw 		174 100 80 150 100 54
80 22.2 352.2 10 32.8 2.1 6.9 76 2.87 4
96 26.7 422.7 9.3 30.5 2.4 7.9 77 3.16 4
IS80/200 1450 63 17.5 2774 15.7 51.5 1.8 5.9 75 3.59
5.5 		Y132M-4
7,5 kW 		214 100 80 150 100 70
105 29.2 462.3 14 45.9 2.6 8.5 82 4.88 7.5
126 35.0 554.8 12.8 42.0 3.4 11.2 78 5.63 7.5
IS80/260 1450 63 17.5 2774 24 78.7 1.3 4.3 70 5.88 7.5 Y160M-4
11kw 		264 100 80 150 100 91
105 29.2 462.3 21 68.9 1.9 6.2 76 790 11
126 35.0 554.8 18.5 60.7 2.3
7.5 		72 8.82 11
IS80/320 1450 60 16.7 264.2 36 118.1 1.9 6.2 62.5 9.41 15 Y180M-4
18,5 kW 		329 100 80 125 100 120
100 27.8 440.3 33 108.3 2 6.6 71 12.66 15
120 33.3 528.3 30 98.4 2.6 8.5 69.5 14.11 18.5
IS80/320A 1450 57.5 16.0 253.2 34 111.5 1.9 6.2 58 9.18 11 "Y160L-4
15 kW 		315
95.5 26.5 420.5 29.5 96.8 2 6.6 69 11.12 15
114.5 31.8 504.1 26 85.3 2.3 7.5 68 11.92 15
IS80/320B 1450 54.5 15.1 240.0 30.5 100.1 1.9 6.2 56 8.08 11 Y160L-4
15 kW 		300
91 25.3 400.7 27.5 90.2 2 6.6 67 10.17 15
109 30.3 4799 25 82.0 2.2 72 66 11.24 15
IS80/400 1450 60 16.7 264.2 59 193.6 1.5 4.9 55.5 17.37 22 Y200L-4
30kw 		409 100 80 125 100 161
100 27.8 440.3 55.5 182.1 2.3 7.5 65.5 23.08 30
120 33.3 528.3 52.5 172.2 2.5 8.2 66.5 25.80 30
IS80/400A 1450 59 16.4 259.8 55 180.4 2.2 7.2 55 16.07 22 Y200L-4
30kw 		395
96.5 26.8 424.9 52.5 172.2 2.4 79 64 21.56 30
116 32.2 510.7 49 160.8 3.2 10.5 63 24.57 30
IS80/400B 1450 56 15.6 246.6 51 167.3 2.2 7.2 54 14.40 18.5 Y200L-4
30kw 		380 100 80 125 100 161
93 25.8 409.5 49 160.8 2.4 79 66 18.80 22
111.5 31.0 490.9 47 154.2 3 9.8 68 20.99 30
IS100/200 1450
90
25.0
396.3
15
49.2
1.3
4.3
80
4.60
7.5 		Y160M-4
11kw 		214 125 100 200 125 85
142 39.4 625.2 12.7 41.7 1.8 5.9 82 5.99 7.5
170 47.2 748.5 10.5 34.4 2 6.6 74.5 6.52 11
IS100/260 1450 99 275 435.9 24 78.7 1.5 4.9 76 8.51 11 Y160L-4
15 kW 		264 125 100 200 125 115

165
45.8
726.5
21
68.9
2.3
7.5
81.5
11.58
15
198 55.0 871.8 19 62.3 2.8 9.2
75 		13.66 15
IS100/320 1450 81 22.5 356.6 39 128.0 1.1 3.6 72 11.95 15 Y180L-4
22 kW 		329 125 100 150 125 134
135 37.5 594.4 33.5 1099 1.6 5.2 80 15.40 22

162
45.0
713.3
30
98.4
1.9
6.2
76.5
17.30
22
ISI00/320A 1450 77.5 21.5 341.2 34 111.5 2 6.6 70 10.25 15 Y180M-4

18,5 kW 		315
130 36.1 572.4 29.5 96.8 2 6.6 76 13.74 18.5

155
43.1
682.4
26.5
86.9
2.18
7.2
73
15.32
18.5
IS100/320B 1450
73.5
20.4
323.6 		30
98.4 		2
6.6 		67
8.96 		15 Y160L-4
15 kW 		300
123
34.2 		541.6 27
88.6 		2
6.6 		76 11.90 15

147.5
41.0
649.4
23
75.5
2.1
6.9
71
13.01
15
IS100/400 1450
90
25.0
396.3
58.8
192.9
0.9
3.0
60.5
23.82
30 		Y225S-4

37kw 		409 125 100 150 125 174
150 41.7 660.4 51 167.3 1.6 5.2 67.5 30.86 37
180 50.0 792.5 44 144.4 2.1 6.9 64.5 33.44 45
IS100/400A 1450 87 24.2 383.0 54 177.2 1.7 5.6 56 22.85 30 Y225M-4
45kw 		395
145 40.3 638.4 48 157.5 2 6.6 66 28.72 37

175
48.6
770.5
42
1378
2.5
8.2
66.4
30.15
37
IS100/400B 1450 84
23.3
369.8
49.5 		162.4 1.7
5.6 		54
20.97 		30 Y225S-4
37kw 		380
139.5 38.8 614.2 45 147.6 1.9 6.2 64 26.71 37
167.5 46.5 737.5 41 134.5 2.4 7.9 64 29.22 37
IS125/200 1450 115 31.9
506.3 		15.2 499
2.6
8.5 		62
7.68 		11 Y160M-4
11kw 		214 150 125 200 150 106
190 52.8 836.5 13 42.7 3.5 11.5 77 8.74 11
230 63.9 1012.7 11.5 377 4 13.1 76.5 942 11
IS125/260 1450 144 40.0 634.0 24.2 794 1.5 4.9 74 12.82 18.5 Y180L-4
22 kW 		264 150 125 200 150 115
240 66.7 1056.7 21 68.9 2.4 79 81 16.95 22
288 80.0 1268.0 17 55.8 2.8 9.2 72 18.52 22
IS125/260A 1450 139 38.6 612.0 21.3 69.9 2.3 7.5 68 11.86 15 Y180M-4
18,5 kW 		255
232 64.4 1021.5 18 59.1 2.5 8.2 79 14.40 18.5
278.5 774 1226.2 15.4 50.5 3 9.8 75 15.57 18.5
IS125/260B 1450 134 37.2 590.0 19.7 64.6 2.3 7.5 74 9.71 15 Y180M-4
18,5 kW 		245
223 61.9 981.8 16 52.5 2.4 79 76 12.79 18.5
267.5 74.3 1177.8 13.4 44.0 2.8 9.2 68 14.36 18.5
IS125/320 1450 120 33.3 528.3 35 114.8 1.3 4.3 67.5 16.95 22 Y200L-4
30kw 		329 150 125 200 150 163
200 55.6 880.6 32.5 106.6 2 6.6 79 22.41 30
240 66.7 1056.7 30 98.4 2.6 8.5 78 25.14 30
IS125/320A 1450
115
31.9
506.3
32.8
107.6
2.15
7.1
68
15.11
18.5 		Y200L-4
30kw 		315
191 53.1 840.9 29.5 96.8 1.95 6.4 77 19.93 30
229 63.6 1008.3 27.5 90.2 2.4 7.9 75 22.87 30
IS125/320B 1450
109
30.3
4799
29
95.1
2.2
7.2
72.5
11.87
18.5 		Y180L-4
22 kW 		300

182
50.6
801.3
25.2
82.7
2
6.6
76
16.43
22
218.5
60.7
962.0 		23
75.5
2.2
7.2 		74 18.49 22
IS125/400 1450 144
40.0
634.0
59.5 		195.2 1.3
4.3
77
30.30 		45 Y280S-4
75kw 		409 150 125 200 150 181
245 68.1 1078.7 52 170.6 2.1 6.9 76.5 45.35 55
300 83.3 13209 45 147.6 2.8 9.2 70.5 52.15 75
IS125/400A 1450 139 38.6 612.0 53.5 175.5 2.2 7.2 64.5 31.40 37

Y250M-4
55kw 		395
236.5 65.7 041.3 46 150.9 2.4 79 74 40.04 55
289 80.3 72.4 38.5 26.3 3 9.8 67 45.23 55
IS125/400B 1450 133.5 371 587.8 51 1673 2.2 7.2 64 28.97 37 Y250M-4

55kw 		380 150 125 200 150 181

227.5
63.2
001.7
40
131.2
2.3
7.5
70.5
35.15
45
278.5 77.4 226.2 32.5 106.6 2.8 9.2 61 40.41 55
IS125/500 1450
150
41.7
660.4
83.5
274.0
2.3
7.5
63
54.14
75 		Y315S-4

110 kW 		500 150 125 200 150 390

250
694
1100.7
78
255.9
2.5
8.2
72
73.76
90
300 83.3 320.9 72 236.2 2.6 8.5 65 90.50 110
IS125/500A 1450
135
37.5
594.4
78.5
257.5
1.8
5.9
60
48.10
55 		Y280S-4

75kw 		485

225
62.5
990.6
75
246.1
2.1
6.9
74
62.10
75
270 75.0 1188.8 71 232.9 2.5 8.2 76 68.69 75
IS125/500B 1450
120
33.3
528.3
75
246.1
1.6
5.2
54
45.39
55 		Y280S-4

75kw 		470
200 55.6 880.6 72 236.2 2 6.6 67 58.53 75
240
66.7 		1056.7 69
226.4
2.4 		79 70
64.43
75
Är 125/500C 1450
90
25.0
396.3
67
219.8
1.6
5.2
50
32.84
37 		Y250M-4

55kw 		445
150 41.7 660.4 65.5 214.9 2 6.6 64 41.81 45

180
50.0
792.5
62
203.4
2.4
79
67
45.36
55
Är 150/200 1450
216
60.0
951.0
14.4
472
3
9.8
70
12.10
15 		Y180M-4

18,5 kW 		220 200 150 250 200 156
360 100.0 1585.0 12.2 40.0 3.5 11.5 80 14.95 18.5

424.8
118.0
870.3
10.3
33.8
4
13.1
77
15.47
18.5
Är 150/200a 1450 172.8 48.0 760.8 13.4 44.0 2.8 9.2 68 9.27 15 Y160L-4

15 kW 		210 200 150 250 200 156
288
80.0
268.0 		12
39.4
3.3 		10.8 78 12.07 15
345.6 96.0 521.6 10.5 34.4 3.8 12.5 76 13.00 15
Är 150/260 1450 194 53.9 854.2 23.5 77.1 2.7 8.9 75 16.55 22 Y200i-4

30kw 		264 200 150 250 200 148

324
90.0
426.5
20.5
673
3
9.8
82
22.06
30
414 115.0
822.8 		16
52.5
3.3 		10.8 68
26.53 		30
IS150/260A 1450 180 50.0 792.5 21.2 69.6 2.5 8.2 72 14.43 18.5 Y200L-4

30kw 		255

300
83.3
320.9
19
62.3
2.8
9.2
79.5
19.53
30
388.8 108.0 711.8 14.5 47.6 3.1 10.2 68 22.58 30
IS150/260B 450
162
45.0
713.3
19
62.3
2.3
7.5
74
11.33
15 		Y180L-4

22 kW 		240

270
75.0
188.8
16.5
54.1
2.6
8.5
79
15.36
22
342 95.0 505.8 12.5 41.0 3 9.8 68 17.12 22
Är 150/320 1450
230
63.9
1012.7
36.5
119.8
2.3
7.5
74
30.89
37 		Y250M-4

55kw 		329 200 150 250 200 170

370
102.8
629.1
33
108.3
2.8
9.2
81
41.05
45
445 123.6 959.3 28.5 93.5 3.2 10.5 75 46.05 55
Är 150/320A 1450
220
61.1
968.6
33.5
1099
2.8
9.2
72
27.88
37 		Y225M-4

45kw 		315

354
98.3
558.6
29.5
96.8
3.1
10.2
79
36.00
45
426 118.3 875.6 25 82.0 3.5 11.5 74 39.19 45
Är 150/320B 1450
210
58.3
924.6
30
98.4
2.8
9.2
71
24.16
30 		Y225S-4

37kw 		300
350 97.2 1541.0 26 85.3 3 9.8 77 32.18 37
420 116.7 1849.2 22 72.2 3.3 10.8 73 34.47 37
Är 150/400 1450
240
66.7
056.7
58
190.3
2.4
79
75
50.54
75 		Y280M-4

90kw 		409 200 150 250 200 209
385 106.9 695.1 53.5 175.5 3 9.8 84 66.78 75

460
1278
2025.3
49
160.8
3.6
11.8
83
73.96
90
Är 150/400A 1450
232
64.4
021.5
52
170.6
2.8
9.2
72
45.63
55 		Y280S-4

75kw 		395
372 103.3 16379 47.5 155.8 3.2 10.5 78 61.69 75

444
1233
954.9
42.5
1394
3.6
11.8
77
66.74
75
Är 150/400B 1450
223
61.9
981.8
48
157.5
2.8
9.2
70
41.64
55 		Y280S-4

75kw 		380
357.5 99.3 1574.0 43.5 142.7 3.1 10.2 76 55.72 75

427.5
118.8
882.2
39
128.0
3.5
11.5
74
61.36
75
Är 150/500 1450 300 83.3 320.9 86.5 283.8 3.1 10.2 79 89.46 110 Y315L1-4

160 kW 		500 200 150 250 200 410
500 138.9 2201.4 77.5 254.3 3.5 11.5 84 125.63 160

600
166.7
641.7
69
226.4
3.8
12.5
81
139.19
160
IS150/500A 1450 270 75.0 1188.8 79.5 260.8 3 9.8 74 78.99 90 Y315M-4

132 kW 		485
450 125. 1981.3 72 236.2 3.4 11.2 80 110.29 132
540 50 2377.5 63 206.7 3.6 11.8 77 120.32 132
IS150/500B 1450 240 66.7 056.7 75.5 2477 2.8 9.2 69 71.52 75 Y315M-4

132 kW 		470 200 150 250 200 410

400
111.1
761.1
70
229.7
3.2
10.5
79
96.52
110
480 133.3 2113.4 65 213.3 3.5 11.5 78 108.93 132
IS150/500C 1450
210
58.3
924.6
68
223.1
2.6
8.5
67
58.04
75 		Y315S-4

110 kW 		445
350 97.2 1541.0 63 206.7 3 9.8 77 7799 90
420 116.7 849.2 60.5 198.5 3.3 10.8 76 91.05 110
IS200/260 1450
259.2
72.0
141.2
19.5
64.0
3
9.8
73
18.86
22 		Y200L-4

30kw 		264 250 200 300 300 256

432
120.0
902.0
15.2
499
3.2
10.5
82
21.81
30
518.4 144.0 2282.4 12 394 3.2 10.5 74 22.89 30
IS200/260A 1450 248.4 69.0 093.7 18 59.1 2.9 9.5 72 16.91 22 Y180L-4

22 kW 		255
414 115.0 822.8 14 45.9 3.1 10.2 81 19.49 22
496.8 138.0 2187.3 10.5 34.4 3.2 10.5 72 19.73 22
IS200/260B 1450 237.6 66.0 046.1 15 49.2 2.8 9.2 70 13.87 18.5 Y180M-4

18,5 kW 		245

396
110.0
743.5
12
39.4
3
9.8
80
16.18
18.5
475.2 132.0 2092.2 9.7 31.8 3.1 10.2 70 1793 18.5
Är 200/320 1450 345 95.8 519.0 35 114.8 3.2 10.5 72.5 45.36
55 		Y280S-4

75kw 		340 250 200 300 300 310
575 159.7 2531.7 30 98.4 3.3 10.8 83.5 56.26 75

690
191.7
3038.0
25.5
83.7
3.4
11.2
79.5
60.27
75
IS200/320A 1450 324 90.0 426.5 30 98.4 3.1 10.2 71 3728 45 Y250M-4

55kw 		320
540 150.0 2377.5 25.5 83.7 3.2 10.5 83 45.18 55
648 180.0 2853.1 21 68.9 3.3 10.8 78 47.51 55
IS200/320B 1450 302.4 84.0 331.4 26.5 86.9 3 9.8 67.5 32.33 45 Y225M-4

45kw 		300

504
140.0
2219.0
22
72.2
3.1
10.2
82
36.82
45

604.8 		168.0
2662.9
8.3
60.0
3.2 		10.5
77.5
38.89 		45
IS200/400 1450 390 108.3 7171 59.5 195.2 3 9.8 74 85.40 110 Y315M-4

132 kW 		418 250 200 300 300 345

650
180.6
2861.9
53.5
175.5
3.8
12.5
84
112.74
132
780 216.7 3434.2 48.5 1591 4.5 14.8 82

70 		125.64 132
IS200/400A 1450 360 100.0 1585.0 52.5 172.2 2.9 9.5 73.53 90 Y315S-4

110 kW 		400

600
166.7
2641.7
46.5
152.6
3.6
11.8
81
93.80
110
720
200.0 		3170.1 41.5 136.2
4.4 		14.4 80 101.72 110
IS200/400B 1450 330 91.7 1452.9 41.5 136.2 2.8 9.2 69 54.05
75 		Y280S-4

75kw 		370

550
152.8
2421.6
36
118.1
3.5
11.5
81
66.57
90

660
183.3
2905.9
31
101.7
4.2
13.8
78
71.43
90
IS200/500 1450 330 91.7 1452.9 90 295.3 3.2 10.5 68 118.94 132 Y355M-4

250 kW 		500 250 200 300 300 510
550 152.8 2421.6 87 285.4 4 13.1 81 160.88 200

660
183.3
2905.9
84.5
277.2
4.8
15.7
80
189.85
250
IS200/500A 1450 300
83.3
320.9
32.5
270.7 		3
9.8 		69
97.68 		110 Y31512-4

200 kW 		480
500 138.9 2201.4 80 262.5 3.8 12.5 82.5 132.04 160
600 166.7 2641.7 77.5 254.3 4.5 14.8 84 150.75 200
IS200/500B 1450 270
75.0 		188.8 73
239.5
2.8
9.2 		63
85.20 		110 Y315L 1-4

160 kW 		460
450 125.0 981.3 71.5 234.6 3.6 11.8 78 112.34 132

540
150.0
2377.5
69
226.4
4.2
13.8
80
126.84
160
IS250/320 1450 522 145.0 2298.3 32 105.0 3 9.8 69 65.93 75 Y280M-4

90kw 		328 300 250 350 350 375
870 241.7 3830.5 27.5 90.2 4.8 15.7 83.5 78.03 90

1044
290.0
4596.6
24
78.7
6.5
21.3
82
83.21
90
IS250/320A 1450
480
133.3
2113.4
29.5
96.8
2.8
9.2
63
61.21
75 		Y280M-4

90kw 		318
800 222.2 3522.3 25.5 83.7 4.5 14.8 82 67.75
75
960 266.7 4226.8 22.5 73.8 6.2 20.3 83.5 70.45 90
IS250/320B 1450
450
125.0
1981.3
28
91.9
2.5
8.2
62
55.34
75 		Y280S-4

75kw 		310
750
208.3
3302.2
24.5
80.4
4.2 		13.8 81 61.78
75
900 250.0 3962.6 22 72.2 6.0 19.7 82 65.76
75
IS250/320C 1450
432
120.0
1902
3.5
77.1
2.4
79
61
45.32
55 		Y280S-4

75kw 		300*

288

(R147)
720 200.0 3170. 20 65.6 4.0 13.1 80 49.02 55
864 240. 3804.1 .5 574 5.8 19.0 76 54.18 75
Är 250/400 1450 550 152.8 2421.6 56.5 185.4 3.0 9.8 75.5 112.09 132 Y315L2-4

200 kW 		422 300 250 350 350 470
760 211.1 3346.2 54 177.2 3.5 11.5 85 131.49 160
950 263.9 4182.7 48.5 159.1 4.5 14.8 83 151.18 200
IS250/400A 1450 360 100.0 585.0 45 147.6 2.6 8.5 62 71.16 90 Y315S-4

110 kW 		380
600 166.7 2641.7 43 141.1 3.2 10.5 80 8783 110
720 200.0 3170.1 40.5 132.9 4.2 13.8 07 95.68 110
Är 250/400B 1450 300 83.3 1320.9 35 114.8 2.3 7.5 55.5 51.52 75 Y280S-4

75kw 		338
500 138.9 2201.4 33 108.3 3.0 9.8 75 59.91 75
600 166.7 2641.7 31 101.7 4.0 13.1 79 64.12 75
Är 250/500 1450 534 148.3 2351.1 85.5 280.5 3.0 9.8 70 177.63 250 Y355L-4

315 kW 		500 300 250 350 350 630
890 247.2 3918.6 80 262.5 5.0 16.4 83 233.61 280
1068 296.7 4702.3 74 242.8 7.0 23.0 81 265.71 315
IS250/500A 1450 480 133.3 2113.4 76 249.3 2.8 9.2 67 148.28 200 Y355M-4

250 kW 		475
800 222.2 3522.3 70.5 231.3 4.6 15.1 80 191.99 250
960 266.7 4226.8 65.5 214.9 6.7 22.0 80 214.05 250
IS250/500B 1450 450 125.0 1981.3 68 223.1 2.6 8.5 65 128.21 160 Y315L2-4

200 kW 		450
750 208.3 3302.2 63 206.7 4.4 14.4 78.5 163.92 200
900 250.0 3962.6 58.4 191.6 6.5 21.3 79 181.19 200
Är 300/320 1450 720 200.0 3170.1 39 128.0 4.2 13.8 70 109.24 132 Y315L1-4

160 kW 		360 350 300 400 400 650
1200 333.3 5283.4 32 105.0 5.0 16.4 84 124.49 160
1440 400.0 6340. 30 98.4 5.5 18.0 76 154.80 160
Är 300/320A 1450 691 191.9 3042.4 35 114.8 4.2 13.8 65 101.33 110 Y315M-4

132 kW 		349
1152 320.0 5072.1 29 95.1 5.0 16.4 80 113.73 132
1382 383.9 6084.8 27.5 90.2 5.5 18.0 75 138.00 132
Är 300/320B 1450 626 173.9 2756.2 33.5 1099 4.4 14.4 70 81.59 90 Y315S-4

110 kW 		334
1044 290.0 4596.6 275 90.2 5.3 174 79 98.97 110
1253 348.1 5516.8 24 78.7 5.7 18.7 83 98.67 110
IS300/400 1450 831.6 231.0 3661.4 52 170.6 5.0 16.4
70 		168.24 200 Y355M-4

250 kW 		415 350 300 400 400 700
1386 385.0 6102.4 46.5 152.6 7.0 23.0 86 204.09 220
1663.2 462.0 7322.9 42 137.8 8.0 26.2 87.5 21741 250
IS300/400A 1450 720 200.0 3170.1 45 147.6 4.8 15.7 65 135.75 160 Y315L2-4

200 kW 		385
1200 333.3 5283.4 40.5 132.9 6.5 21.3 81 163.40 200
1440 400.0 6340. 37 121.4 7.5 24.6 82 176.95 200
IS300/400B 1450 594 165.0 2615.3 38.5 126.3 4.5 14.8 54.5 114.27 132 Y315L1-4

160 kW 		360*6 °
990 275.0 4358.8 35 114.8 6.0 19.7 74 127.52 160
1188 330.0. 52306 32.5 106.6 7.0 23.0 79 133.10 160

Tenbell över pumphuvudinstallationsdimensioner

Pumpspecifikation Enxeldiameter Ingång
Φ1

Utgång
Φ2

Pumpstorlek Pumpa fotstorlek Axelens slutdimension Koppling
Slutnyckelspecifikation
a f h1 h2 b m1 m2 n1 n2 n3 h3 Φs1 Φs2 W d L
IS32/130 25 Φ50 Φ32 80 360 112 140 50 100 70 190 140 100 14 14 14 267 24 50 8*7*32
IS32/160 25 Φ50 Φ32 80 360 132 160 50 100 70 240 190 100 14 14 14 267 24 50 8*7*32
IS32/200 25 Φ50 Φ32 80 360 160 180 50 100 70 240 190 110 14 14 14 267 24 50 8*7*32
IS32/260 25 Φ50 Φ32 100 360 180 225 65 125 95 320 250 110 14 14 14 267 24 50 8*7*32
IS40/130 25 Φ65 Φ40 80 360 112 140 50 100 70 210 160 100 14 14 14 267 24 50 8*7*32
IS40/160 25 Φ65 Φ40 80 360 132 160 50 100 70 240 190 100 14 14 14 267 24 50 8*7*32
IS40/200 25 Φ65 Φ40 100 360 160 180 50 100 70 265 212 110 14 14 14 267 24 50 8*7*32
IS40/260 25 Φ65 Φ40 100 360 180 225 65 125 95 320 250 110 14 14 14 267 24 50 8*7*32
IS40/320 35 Φ65 Φ40 125 470 200 225 65 125 95 345 280 110 14 14 14 342 32 80 10*8*40
IS50/130 25 Φ65 Φ50 100 360 132 160 50 100 70 240 190 100 14 14 14 267 24 50 8*7*32
IS50/160 25 中 65 Φ50 100 360 160 180 50 100 70 265 212 110 14 14 14 267 24 50 8*7*32
IS50/200 25 Φ65 Φ50 100 360 160 200 50 100 70 265 212 110 14 14 14 267 24 50 8*7*32
IS50/260 25 Φ65 Φ50 100 360 180 225 65 125 95 320 250 110 14 14 14 267 A
2 		50 8*7*32
IS50/260G 35a Φ65 Φ50 100 454 180 225 65 125 95 320 250 110 14 14 14 328 32 80 10*8*40
IS50/320 35 Φ65 Φ50 125 470 225 280 65 125 95 345 280 110 16 14 14 342 32 80 10*8*40
IS.65/130 25 Φ80 Φ65 100 360 160 180 65 125 95 280 212 110 14 14 14 267 24 50 8*7*32
IS65/160 25 Φ80 Φ65 100 360 160 200 65 125 95 280 212 110 14 14 14 267 24 50 8*7*32
IS55/200 25 Φ80 Φ65 100 360 180 225 65 125 95 320 250 110 14 14 14 267 24 50 8*7*32
IS65/200g 35a Φ80 Φ65 100 454 180 225 65 125 95 320 250 110 14 14 14 328 32 80 10*8*40
IS65/260
35 		Φ80 Φ65
100
470
200
250
80
160
120
360
280
110
16
18
14
342
32
80
10*8*40
IS65/320 35 Φ80 Φ65 125 470 225 280 80 160 120 400 315 110 16 18 14 342 32 80 10*8*40
IS80/160 25 Φ100 Φ80 125 360 180 225 65 125 95 320 250 110 14 14 14 267 24 0 8*7*32
Är B0/160G 35a Φ100 Φ80 125 454 180 225 65 125 95 320 250 110 14 14 14 328 32 80 10*8*40
Är B0/160G
35a 		Φ100 Φ80 125 454 180 225 65 125 95 320 250 110 14 14 14 328 32 80 10*8*40
IS80/200
35 		Φ100 Φ80
125
470
180
250
65
125
95
345
280
110
14
14
14
342
32
80
10*8*40
IS80/260 35 Φ100 Φ80 125 470 200 280 80 160 120 400 315 110 16 18 14 342 32 80 10*8*40
IS80/320 35 Φ100 Φ80 125 470 250 315 80 160 120 400 315 110 16 18 14 342 32 80 10*8*40
IS80/400 45 Φ100 Φ80 125 520 280 355 85 160 120 400 355 110 16 18 14 370 42 110 12*8*56
IS100/200 35 Φ125 p100 125 470 200 280 80 160 120 360 280 110 16 18 14 342 32 80 10*8*40
IS100/260 35 Φ125 p100 140 470 225 280 80 160 120 400 315 110 16 18 14 342 32 80 10*8*40
IS100/320 35 Φ125 p100 140 470 250 315 80 160 120 400 315 110 16 18 14 342 32 80 10*8*40
IS100/400 45 Φ125 p100 140 530 280 355 100 200 150 500 400 110 18 07 14 370 42 110 12*8*56
IS125/200 35 Φ150 P125 140 470 250 315 80 160 120 400 315 110 16 18 14 342 32 80 10*8*40
IS125/260 35 Φ150 Φ125 140 470 250 355 80 160 120 400 315 110 16 18 14 342 32 80 10*8*40
IS125/320 45 Φ150 P125 140 530 280 355 100 200 150 500 400 110 18 23 14 370 42 110 12*8*56
IS125/400 45 Φ150 p125 140 530 315 400 100 200 150 500 400 110 18 23 14 370 42 110 12*8*56
Är 125/500 60 Φ150 P125 180 670 375 500 120 200 150 550 450 140 25 23 14 511 55 110 16*10*100
IS150/200 35g p200 P150 160 495 280 400 100 200 150 550 450 110 20 23 14 367 32 80 10*8*40
Är 150/260 45 Φ200 P150 160 530 250 355 100 200 150 450 350 110 18 23 14 370 42 110 12*8*56
IS.150/320 45 Φ200 D150 160 530 280 400 100 200 150 550 450 110 18 23 14 370 42 110 12*8*56
Är 150/400 45 Φ200 P150 160 530 315 450 100 200 150 550 450 110 18 23 14 370 42 110 12*8*56
IS150/500 60 Φ200 D150 180 670 375 500 120 200 150 550 450 140 25 23 14 511 55 110 16*10*100
IS200/260 45 Φ250 Φ200 180 550 280 400 100 200 150 550 450 110 25 27 14 389 42 110 12*8*56
IS200/320 55 Φ250 Φ200 200 670 355 450 100 200 150 550 450 110 20 23 14 511 48 110 14*9*100
IS200/400 55 Φ250 Φ200 200 670 355 500 120 200 150 550 450 110 20 23 14 511 48 110 14*9*100
IS200/500 60 Φ250 Φ200 210 675 400 500 160 300 240 720 600 140 30 27 14 511 55 110 16*10*100
IS250/320 55 Φ300 Φ250 200 670 355 525 100 250 175 600 500 110 24 23 14 511 48 110 14*9*100
IS250/400 60 Φ300 p250 250 670 400 500 120 300 250 710 600 140 25 23 14 511 55 110 16*10*100
IS250/500 75 Φ300 P250 240 875 425 545 160 300 200 720 600 140 30 27 19 625 70 140 20*12*120
IS300/320 75 Φ350 Φ300 260 875 400 560 140 300 200 750 600 140 40 27 19 625 70 140 20*12*120
IS300/400 75 Φ350 Φ30 280 875 500 600 150 300 200 800 660 140 40 27 19 625 70 140 20*12*120
+ Förstå detaljerade produktparametrar
Relaterade produkter
Contact Us

We attach great importance to your letter and will reply to you as soon as possible.

Om oss

Anhui Freida Pump and Valve Manufacturing Technology Co., Ltd. är ett heltäckande företag som integrerar industri och handel, specialiserat på produktion av olika kemiska pumpar, inklusive magnetpumpar, centrifugalpumpar, dränkbara pumpar, självsugande pumpar, rörledningspumpar samt korrosionsbeständiga och slitstarka pumpar. Företaget använder avancerad datorstödd teknisk analys (CFD), CNC-bearbetningsteknik och strikta test- och kvalitetskontrollsystem för att säkerställa produkternas höga kvalitet. Som tillverkare av kemiska pumpar.

Våra produkter exporteras huvudsakligen till flera länder och regioner runt om i världen, inklusive USA, Tyskland, Japan, Spanien, Italien, Storbritannien, Sydkorea, Australien och Kanada, och har etablerade samarbetsrelationer med många kemiska anläggningar, avloppsreningsverk och nya energilagar, inklusive flera Fortune 500 -företag. Genom kontinuerlig och stabil produktkvalitet och service har den blivit en viktig kemisk pumpleverantör för dessa företag i Kina och vunnit ett stort erkännande på inhemska och utländska marknader.

Ära

  • Anhui Freida Pump and Valve Manufacturing Technology Co., Ltd.
    Certifikat
  • Anhui Freida Pump and Valve Manufacturing Technology Co., Ltd.
    Certifikat
  • Anhui Freida Pump and Valve Manufacturing Technology Co., Ltd.
    Certifikat
  • Anhui Freida Pump and Valve Manufacturing Technology Co., Ltd.
    Certifikat
  • Anhui Freida Pump and Valve Manufacturing Technology Co., Ltd.
    Certifikat
  • Anhui Freida Pump and Valve Manufacturing Technology Co., Ltd.
    Certifikat

Nybörjare
